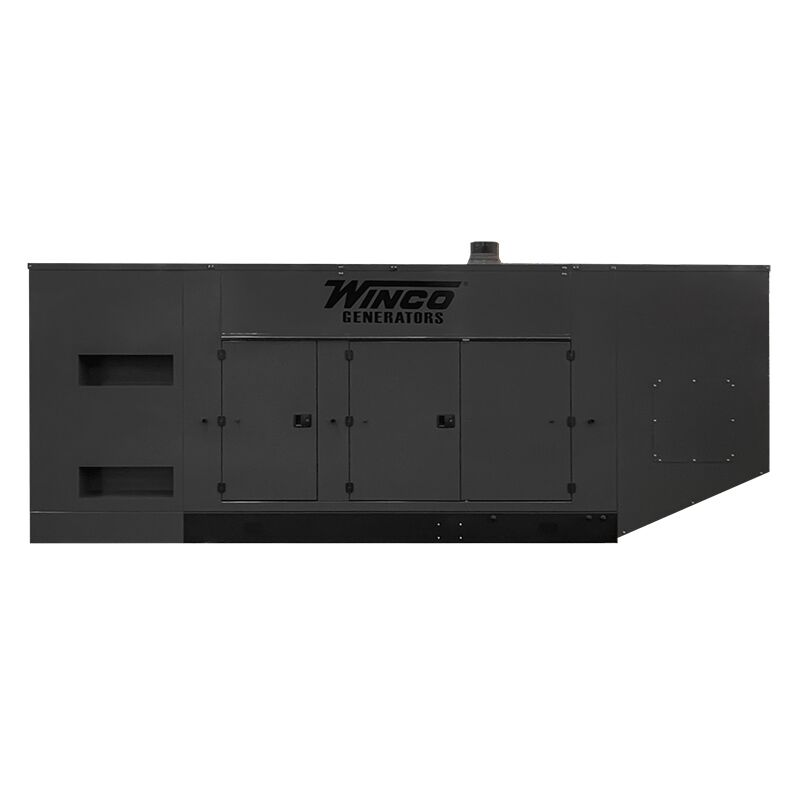

DR400V4/2

Name: DR400V4/2
SKU: DR400-1
Availability: InStock

Call for Quote

Housing* Required

Clear selection

Subtotal:

Controller* Required

Clear selection

Subtotal:

DSE890 Communications Package* Optional

Clear selection

Subtotal:

Voltage* Required

Clear selection

Subtotal:

Generator End* Required

Clear selection

Subtotal:

Permanent Magnet Generator (PMG)* Required

Clear selection

Subtotal:

Generator Strip Heater* Optional

Clear selection

Subtotal:

Circuit Breaker* Required

Clear selection

Subtotal:

Fuel Tank* Optional

Clear selection

Subtotal:

NFPA 110* Optional

Clear selection

Subtotal:

Battery Charger* Required

Clear selection

Subtotal:

Remote Display* Optional

Clear selection

Subtotal:

Remote E-Stop* Optional

Clear selection

Subtotal:

Start Battery* Optional

Clear selection

Subtotal:

Battery Heater* Optional

Clear selection

Subtotal:

Add-Ons Option Total:
Component Options Total:
Order Total:

The add to cart button is disabled because the following component is not selected:

Add to quote

SKU: DR400-1 Categories: Commercial Standby, Current Products, Diesel Standby

Product Description

Volvo Industrial Engine

Reliable and durable, Volvo engine for standby

power operations will ensure peace of mind, day after day.

Deep Sea 7310 MKII Controller

Our digital controller is powerful and dynamic with a

user-friendly interface.

Stamford Generator End

Alternators built to produce clean power for industrial

applications.

Battery Charger

Marine grade, 8 Amp battery charger.

Block Heater

In-line Kim Hotstart, 120V, 2250 Watt, block heater

with thermostat.

Powder Coat Paint

Provides a durable, long lasting finish.

100% Load Tested

We load test every generator before it leaves our factory.


General Information
Spec Sheet	Operators Manual	Open Skid Manual
Parts List	DSE7310	DSE Serial Communication
Tri-Fold Brochure
Drawings
Outline Drawing	Outline Drawing DXF	3D Drawing
Outline Drawing- Narrow	Outline Drawing- Narrow DXF	Outline Drawing- Narrow DXF
Engine
Spec Sheet	Operators Manual	EPA Certificate
Generator
Spec Sheet	Operators Manual	Parts List
Additional Information
Housing	Battery Charger	Battery
Circuit Breaker	Coolant Heater	Shock Mounts
Diesel Fuel Tanks	NFPA 110

Additional Information

Watts	120/240 1-Ph: N/A 120/208 3-Ph: 400000 120/240 3-Ph: 400000 277/480 3-Ph: 400000 346/600 3-Ph: 400000
Amps	120/240 1-Ph: N/A 120/208 3-Ph: 1388 120/240 3-Ph: 1201 277/480 3-Ph: 601 346/600 3-Ph: 481
Voltage Output	120/208 Volt Three Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase, 346/600 Volt Three Phase
Voltage Regulation	AVR (Automatic Voltage Regulator)
Fuel	Diesel
Emissions	EPA Standby
Dimensions	Enclosed: 236" x 78" x 99"
Weight	8,950 lbs Open Skid 11,500 lbs. Housed
Unit Warranty	2 yr/2000 hrs
Assembled In	USA
