Product Description

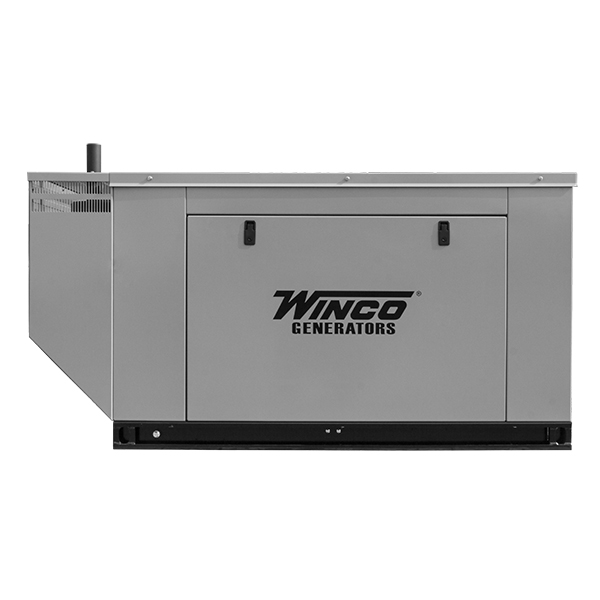

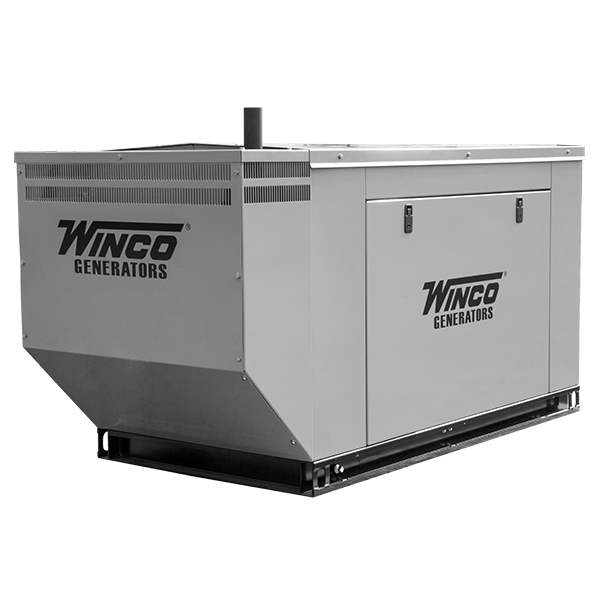

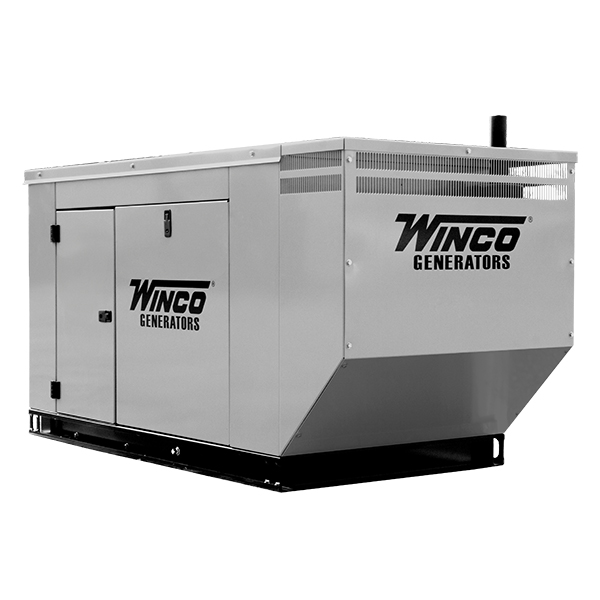

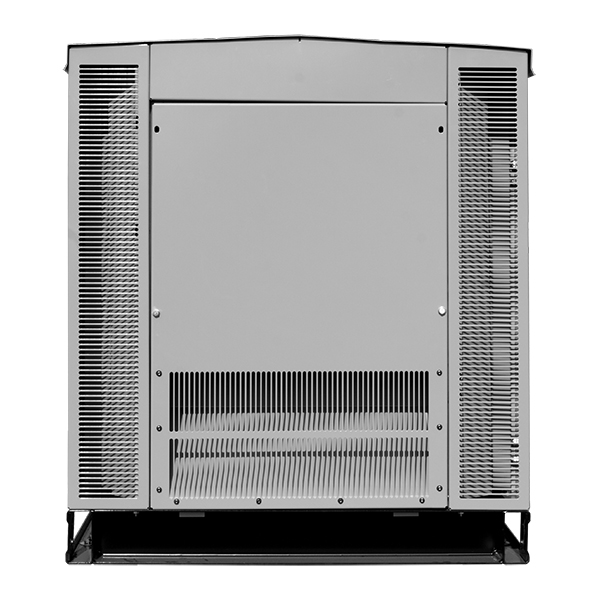

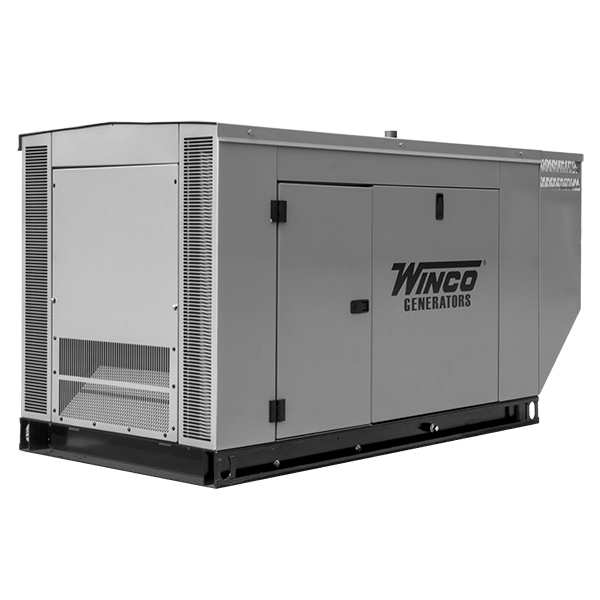

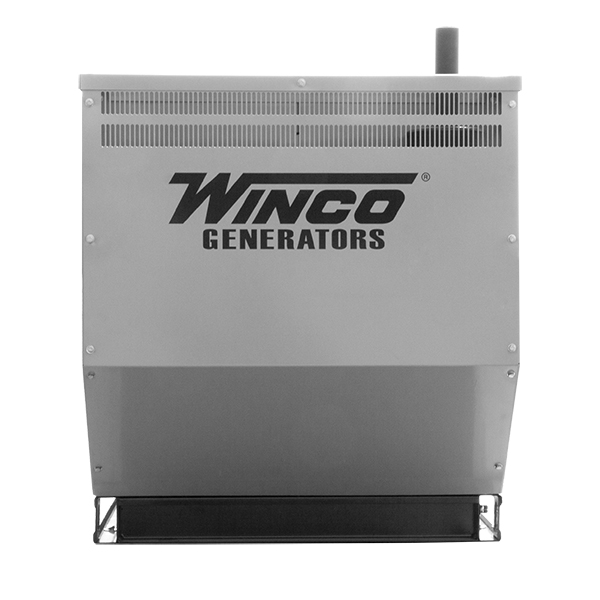

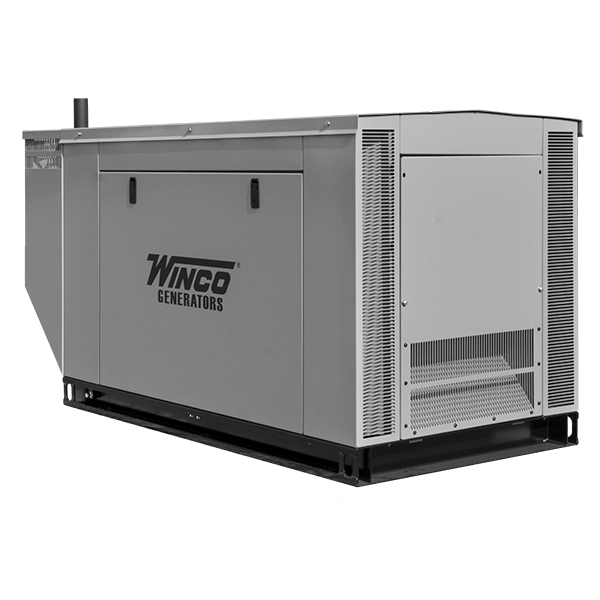

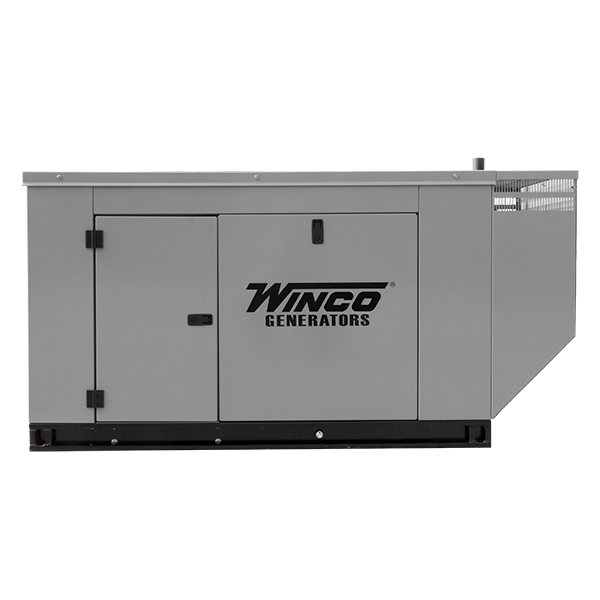

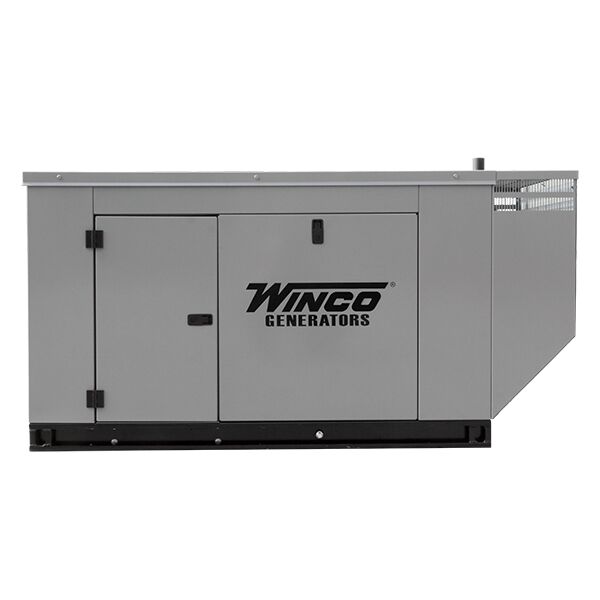

DR12I4

Our DR12I4 has been redesigned with an Isuzu 3CE1 engine for standby and prime applications. This unit has been engineered with an Isuzu engine coupled to a Stamford generator end. We believe this unit is the best on the market.


Isuzu 3CE1 1.6 Liter Engine
     This Isuzu engine is a dependable tier 4 Final, 3 cylinder, 1800 RPM engine.
DSE7310
     The DSE7310 MKII is a powerful, new generation auto start
     genset control module with a highly sophisticated level of new
     features and functions, presented in the usual DSE user-friendly format.
Stamford Generator End

     Industrial grade generator ends predominantly used for
standby applications. These alternators are very versatile

     for more demanding and challenging applications.
Battery Charger
     Factory installed 3 stage, 5 Amp battery charger.
Block Heater
     In-line, 120V, block heater with thermostat.
Powder Coat Paint
     Provides a durable, long lasting finish.
UL2200 Listed
     A safety standard for the design, construction, and
     performance of stationary generators.
100% Load Tested
     We load test every generator before it leaves our factory.
Optional Transfer Switches
     At WINCO, we are experts when it comes to recommending the best
     transfer switch to suit your needs.
     Click to see the ASCO Automatic Transfer Switches we offer.
WP DataTables

Additional Information

Watts

Standby: 12,500
Prime: 11,250

Amps - Standby

120/240 1-Ph: 52
120/208 3-Ph: 43
120/240 3-Ph: 37
277/480 3-Ph: 18

Amps - Prime

120/240 1-Ph: 46
120/208 3-Ph: 38
120/240 3-Ph: 33
277/480 3-Ph: 16

Voltage Regulation

AVR (Automatic Voltage Regulator)

Voltage Output

120/208 Volt Three Phase, 120/240 Volt Single Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase

Engine Brand

Isuzu

Fuel

Diesel

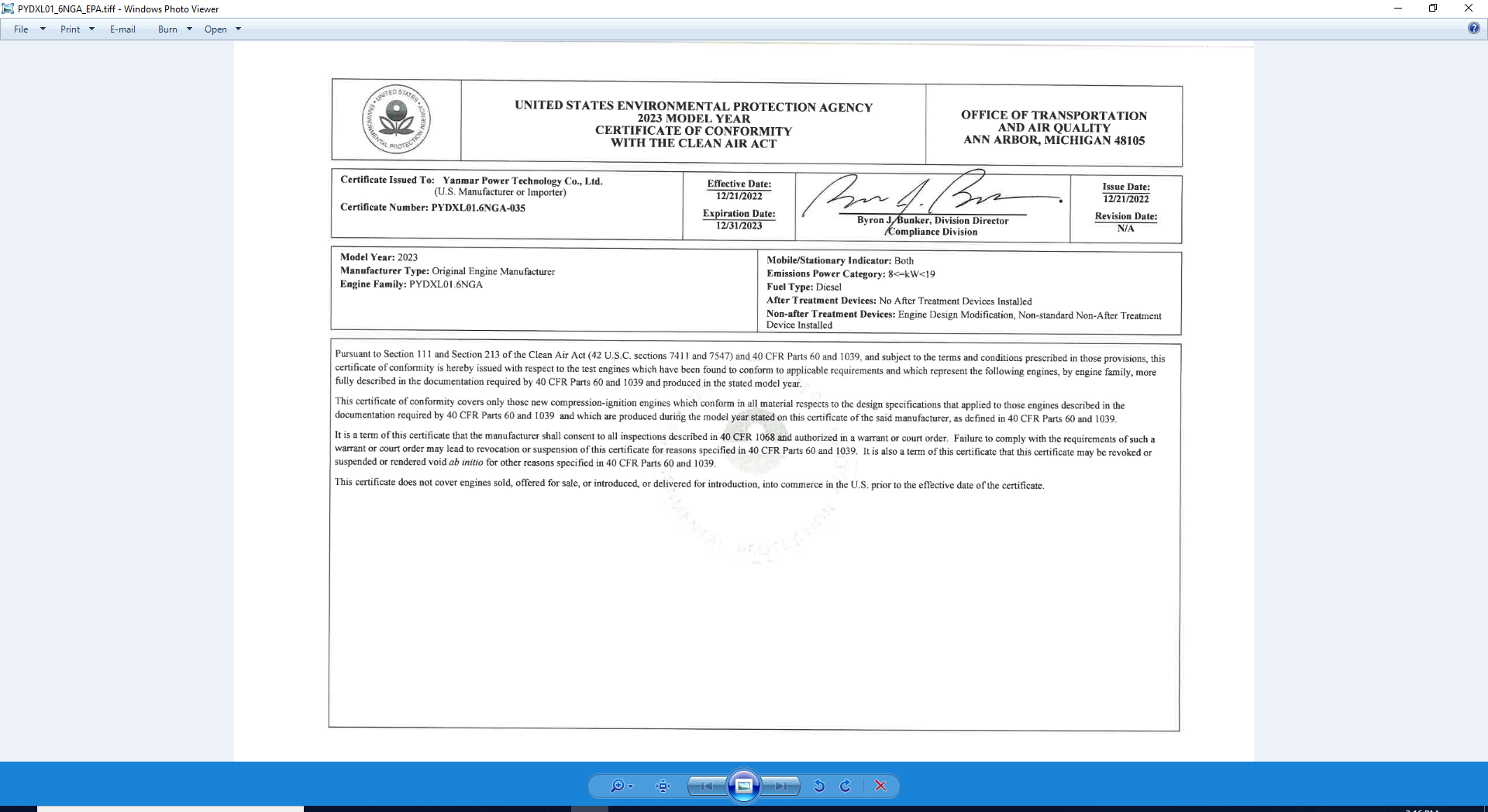

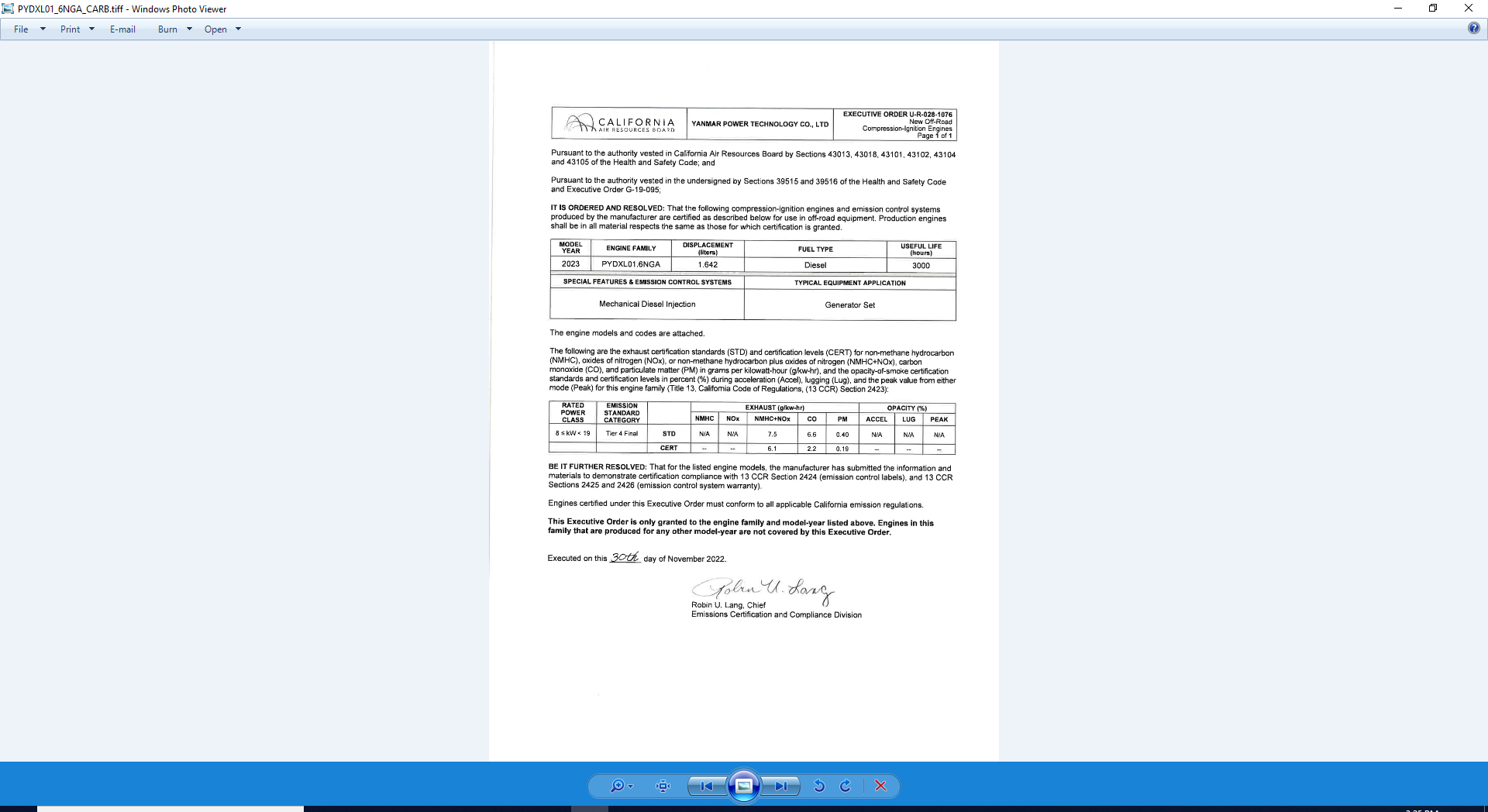

Emissions

EPA Prime, EPA Standby

Dimensions

Open Skid: 63" x 34" x 33.71"
Enclosed: 74.93" x 34" x 44.81"

Weight

1790 lbs.

Unit Warranty

Standby: 2 yr/2000 hrs
Prime: 1 yr/2000 hrs

Assembled In

USA
