Additional Information
| Starting Watts | 22,000 |
|---|---|
| Running Watts | 19,000 |
| Running Amps | 158.3/79.2 |
| Voltage Output | 120/240 Volt Single Phase |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |
| 120V Receptacles | (4) NEMA 5-20 20A (GFCI) |
| 120/240V Receptacles | (1) CS6369 50A |

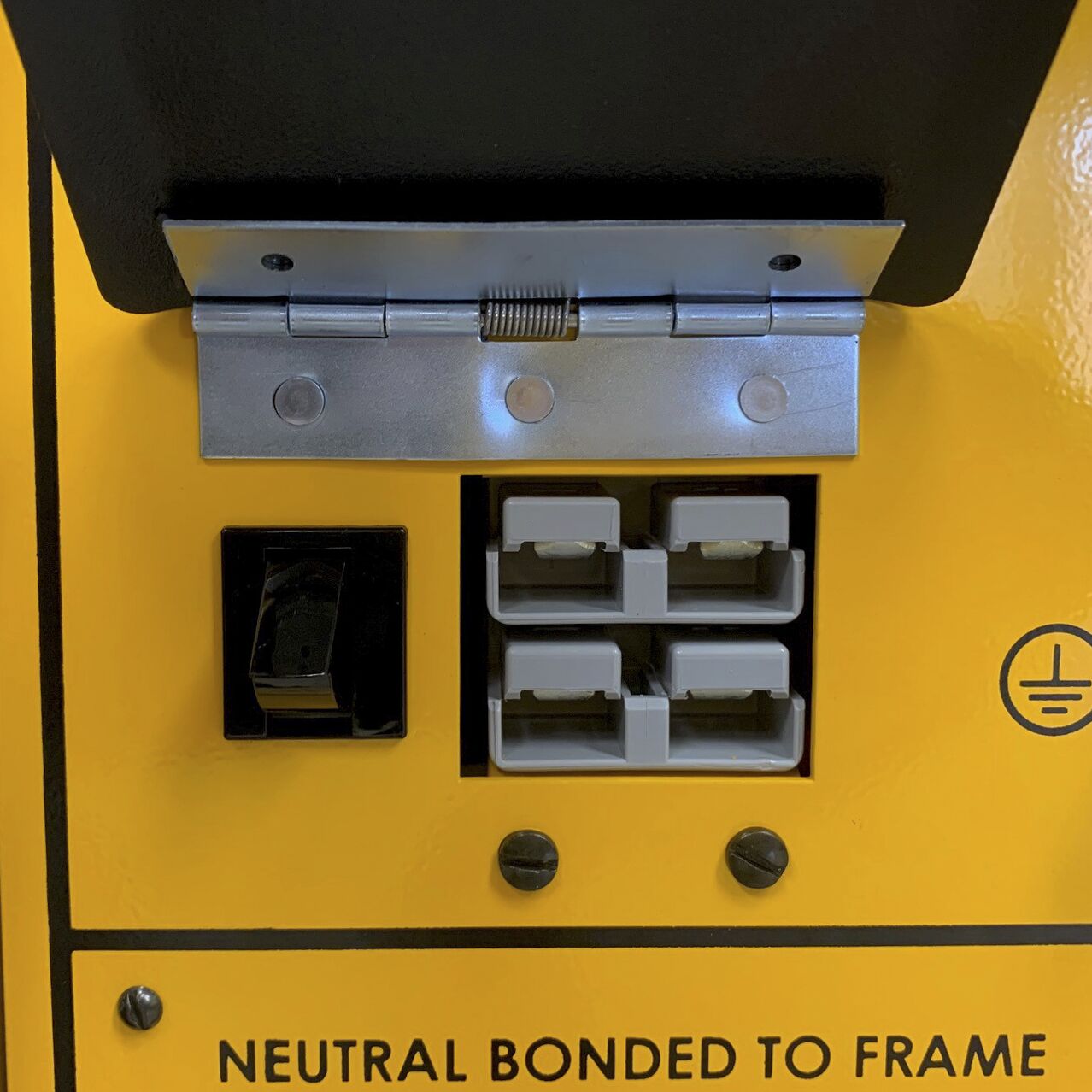

| 120/240V Anderson Connector | 120 Amps |

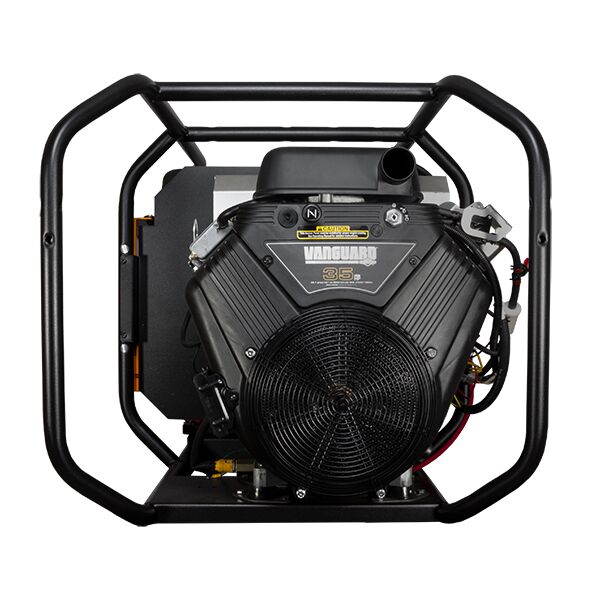

| Engine Brand | Briggs |
| Fuel | Gasoline |
| Emissions | EPA Prime |
| Dimensions | 43" x 28.85" x 28.85" |
| Weight | 504 lbs. |
| Unit Warranty | 3 Year Commercial |
| Assembled In | USA |
Question
Charles Carlson –
I currently have a Big Dog 18000 with a 60 amp receptacle. Is there a possibility of getting a 60 amp receptacle on a Big Dog 22000 unit?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Josie Krugerud –
To get the full amperage power from this WL22, we had engineered this model with the Anderson connector. We do have a different model of the WL22 that has two 50A straight blade receptacles, but you would have to split the load between the two receptacles. https://www.wincogen.com/product/wl22000ve-a/. We do not have a version with the 60A receptacles. If you have any more questions, you can call our Sales team at 507-357-6821.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Ryan Atkinson –
I plan on using this generator as a home back-up as well. Do you offer a generator power cord that can connect to the Anderson port on the generator? If so, what type of connection is on the other end of the power cord? Also, what type/size of manual transfer switch would be best with this generator?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Admin Josie Krugerud –
Hello Ryan,
We do not offer power cords for this unit. We do supply the Anderson plug kit that plugs into the Anderson receptacle.
We recommend using a 100 amp transfer switch – https://www.wincogen.com/product/manual-transfer-switch-100-amp-1-ph/
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Derrick –
I have recently purchased the 22,000 model with Anderson connection. Is there a way to connect an extended use fuel drum to the fuel system of the generator? Thanks for your help.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Dale Riebel –
Derrick, yes you can add an additional fuel tank. Bear in mind the distance you are trying to pull fuel from. For distances greater than 3 feet and below the existing fuel tank level, you will need to install an electric fuel pump.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
