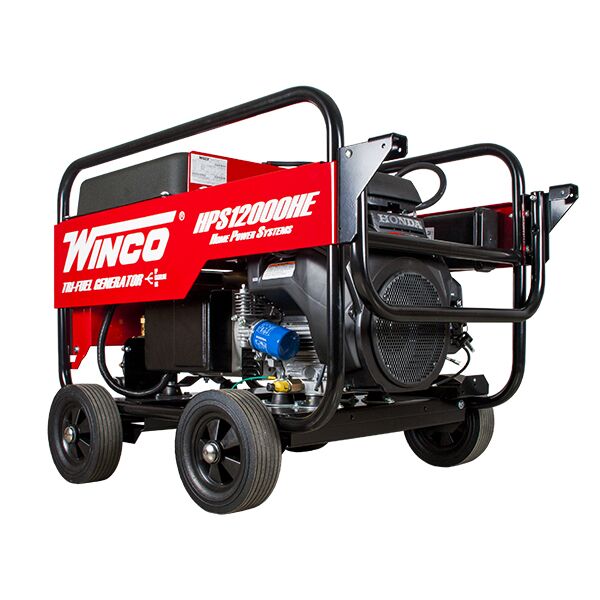

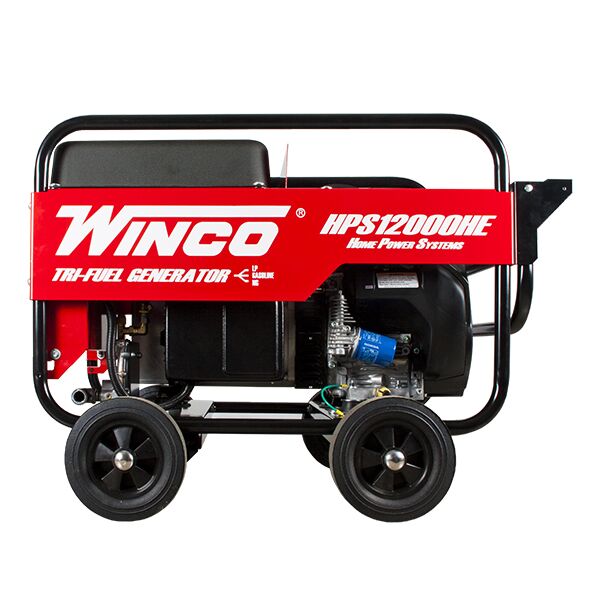

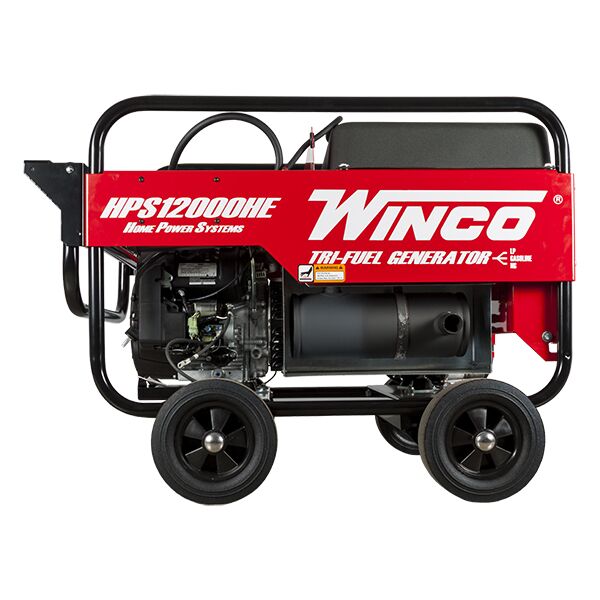

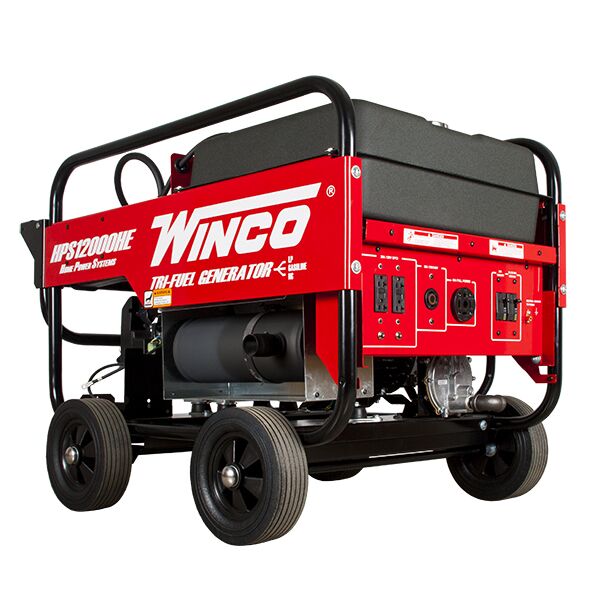

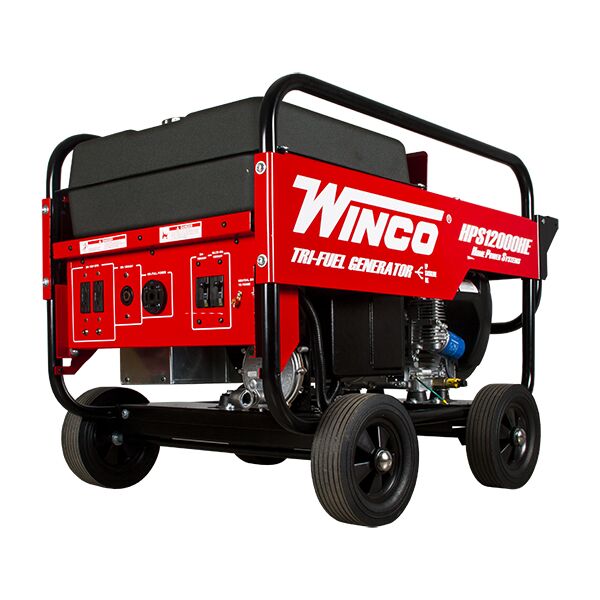

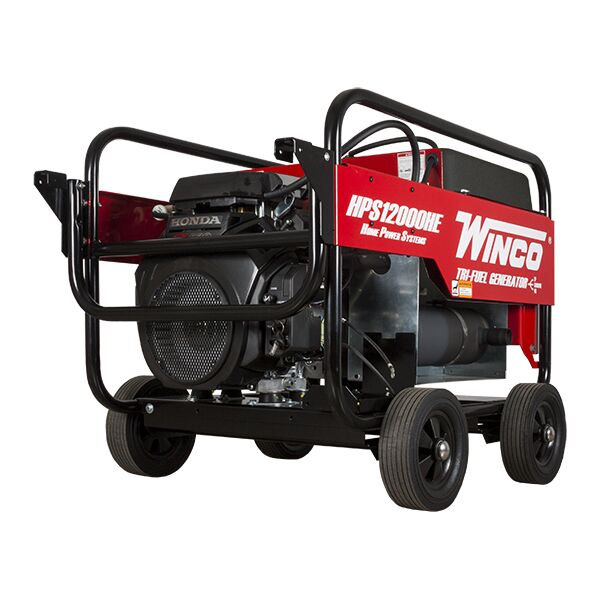

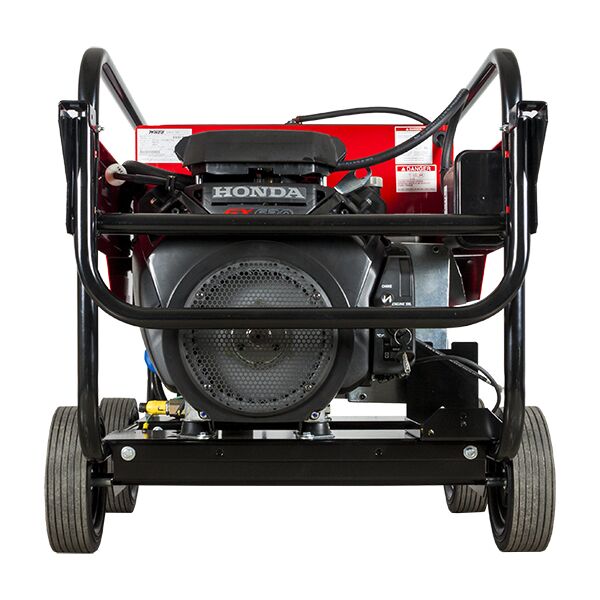

Support for Model: HPS12000HE-03/B
| General Information | ||
| Spec Sheet | Operators Manual | Parts List |
| Load Balancing | Tri-Fold Brochure | |
| Engine | ||
| Operators Manual | Shop Manual | Parts List |
| Generator | ||
| Spec Sheet | ||
| Additional Information | ||
| Battery | Dolly Kit Installation Instructions |
Additional Information
| Starting Watts | 12000 |
|---|---|
| Running Watts | 10800 |
| Running Amps | 90/45 |
| Voltage Output | 120/240 Volt Single Phase |
| Voltage Regulation | Capacitor |

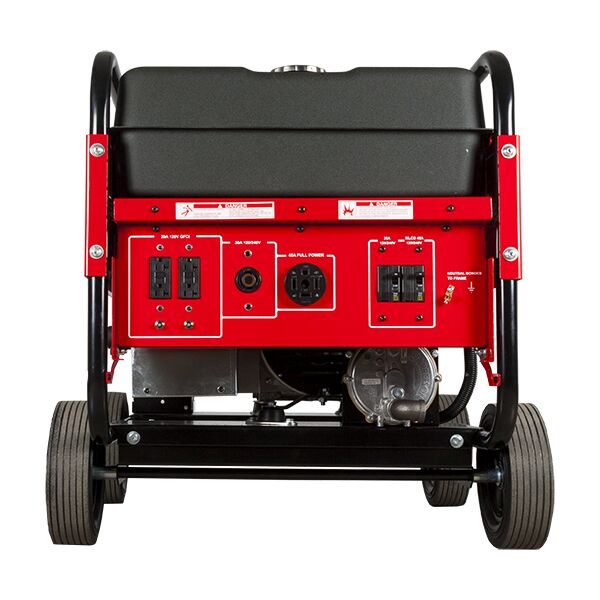

| 120V Receptacles | (2) NEMA 5-20R 20A (GFCI) Duplex |
| 120/240V Receptacles | (1) NEMA L14-30 30A |
| Engine Brand | Honda |
| Fuel | Gasoline, LP/NG |
| Emissions | EPA Prime |
| Dimensions | 44.7" x 23" x 33" |
| Weight | 456 lbs. |
| Unit Warranty | 2 Years Commercial |
| Assembled In | USA |
Question
Steve Koratsky –
Does this generator, HPS12000HE, require a rest period each day? The manufacturer of my current generator recommends running the generator a maximum of 14 hours then giving the generator a 2 hour rest period before using it again.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Dale Riebel –
Steve, although our operators manual does not require it, the engine manual requires you to check the oil daily. From a practical point of view, Winco would recommend shutting it down every 12 hours to check the oil and do the required engine maintenance as outlined in the engine manual. FYI, the engine has a low oil shut-down as a protection, and will shut off when the engine oil get too low.
