10 Amp Battery Charger 24V

MSRP $880.00

SKU: 352020-22 Categories: , ,

Product Features

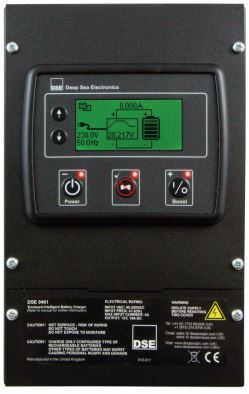

The 10A DSE9461 can be programmed for different charging curves to maximize the life of the battery using a 3-stage charging profile with adjustable current limit (max 10A). This model can be used as a battery charger, power supply or both at the same time. Analog voltmeter and ammeter along with LCD display allow easy monitoring of the charging system. A battery failure contact is linked to the digital genset controller to indicate a loss of power to charger. This DSE9461 is required for NFPA110 applications.

WP DataTables

Additional Information

Voltage

12/24V DC

Amps

10

Input AC Voltage

90-305V 48-64Hz

Operating Temp Range

-30C through +55C

Housing Material

Metal

Temp Sensor Input

PT1000

Charge Failure Relay

3A @ 30V DC

Battery Type

12/24V

Protections

Short Circuit
Over Voltage
Over Current
Reverse Polarity
Over Temp
Battery Charger Failure

Energy Saving

Yes, Eco-Power

Ingress Protection

IP67, 100% Waterproof

Compliance

NFPA110

Monitor Display

LDC Display

Fault Detection

Yes

Dimensions

6.5" x 4.3" x 12"
