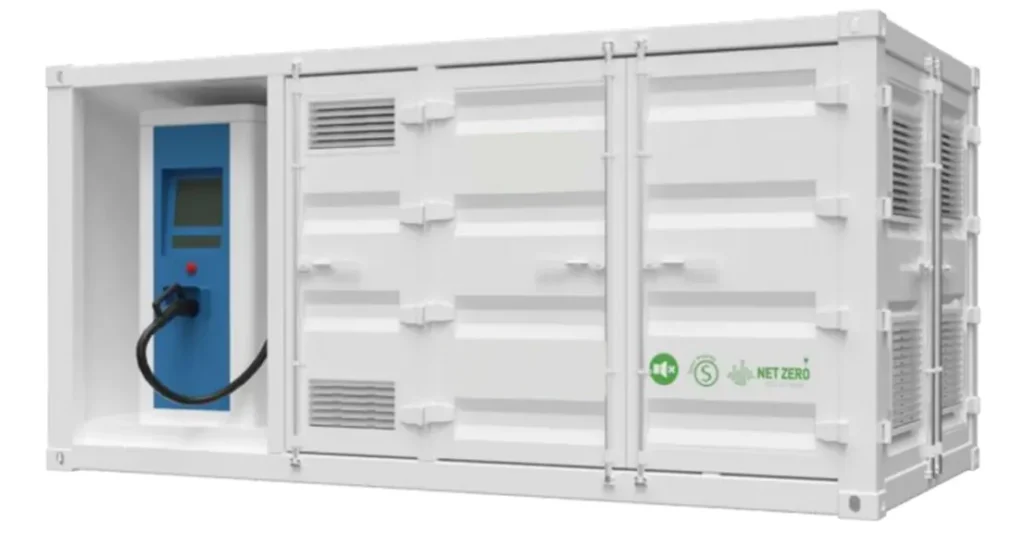

ESS is a new range of secure integrated lithium-ion battery energy storage system. According to various power demands, WINCO battery energy storage system is more compact, efficient and flexible. The system capacity is 30 to 2000 kWh. We also design a specific silent canopy for the BESS with a capacity below 100kWh. It integrates up-market battery system, battery management system and operation monitor system in a small foot-print with excellent lithium-ion battery consistency, meeting the most demanding applications.
ESS Series
| Model | ESS3060 | ESS50100 | ESS100200 | ESS250400 | ESS5001000 |
|---|---|---|---|---|---|
| Rated Power (AC) | 30kW | 50kW | 100kW | 250kW | 500kW |
| Rated Voltage | 277/480 3-PH | 277/480 3-PH | 277/480 3-PH | 277/480 3-PH | 277/480 3-PH |
| Camlock Connection | Included | Included | Included | Included | Included |
| Energy Capacity (77F) | 61.4kWh | 100.3kWh | 200.7kWh | 401.4kWh | 1003.5kWh |
| Pack Capacity (77F) | 5.12kWh | 14.336kWh | 14.336kWh | 14.336kWh | 14.336kWh |
| Cycle Life @90% DOD | 4,000 times | 6,000 times | 6,000 times | 6,000 times | 6,000 times |
| Battery Voltage Range | 150-750VDC | 150-750VDC | 500-850VDC | 500-850VDC | 500-850VDC |
| Charger Cooling System | Electric Fan | HVAC | HVAC | HVAC | HVAC |
| Aerosol Fire Fighting System | Included | Included | Included | Included | Included |
| Operating Temperature | -4F to 122F | -4F to 122F | -4F to 122F | -4F to 122F | -4F to 122F |
| Dimensions (LxWxH) | 76.8″x44.48″x88.58″ | 88.58″x44.48″x88.5″ | 88.58″x88.5″x88.5″ | 88.58″x88.5″x88.5″ | 20HC |
| Dry Weight | 3,738 lbs | 4,630 lbs | 9,039 lbs | 14,992 lbs | 39,684 lbs |
Vanguard Battery Packs
Designed, engineered and assembled in the USA, the Vanguard is the way to electrification. These commercial Lithium-Ion battery packs provide unmatched power, reduced maintenance and lower total cost of ownership. This unique offering allows our engineering team to innovate your next energy storage system application with a flexible single source integration of (Battery Pack + Battery Management System + Charger). The first completely serviceable battery in the industry allowing it to be repaired instead of replaced. Single CANbus J1939 communication protocol for expandable power needs.
| Model | Si1.5 | Fi1.5 | Fi3.5 | Fi5.0 | Fi7.0T | Fi7.0L |
|---|---|---|---|---|---|---|
| IPX Rating | IP44 | IP66 | IP66 | IP66 | IP66 | IP66 |
| UL1642 Listed | Yes | Yes | Yes | Yes | Yes | Yes |
| Rated Voltage – Nominal Voltage | 48V – 51.4V | 48V – 51.4V | 48V – 51.6V | 48V – 51.6V | 48V – 51.6V | 48V – 51.6V |
| Discharge Cutoff Volatge | 35.0V | 35.0V | 35.0V | 35.0V | 35.0V | 35.0V |
| Pack Capacity per IEC 61960 | 1.5kWh | 1.5kWh | 3.5kWh | 5.1kWh | 7.0kWh | 7.0kWh |
| Cycle Life @80% DOD | 28.4Ah | 28.4Ah | 67.5Ah | 98.7Ah | 135.9Ah | 135.9Ah |
| Paralleling Capable | Yes | Yes | Yes | Yes | Yes | Yes |
| Discharge Temperature Range | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F |
| Dimensions (LxWxH) | 10.2″x5 4″x16.7″ | 10.1″x5.1″14.6″ | 19.9″x11.5″x10.5″ | 23.3″x10.5″x14.4″ | 23.3″x10.5″x14.4″ | 34.5″x11.2″x10.4″ |
| Dry Weight | 26 lbs | 25.5 lbs | 58 lbs | 86 lbs | 102lbs | 105lbs |
